Specifications

Conformable and reliable Renolit polymeric material. Suitable for full car wrapping (or any other smooth or curved surface).

The thickness of the film 0.12mm
The thickness of film with release liner: 0.28mm
Type of film: Pressure-sensitive high-grade polymeric vinyl film with air-release channels

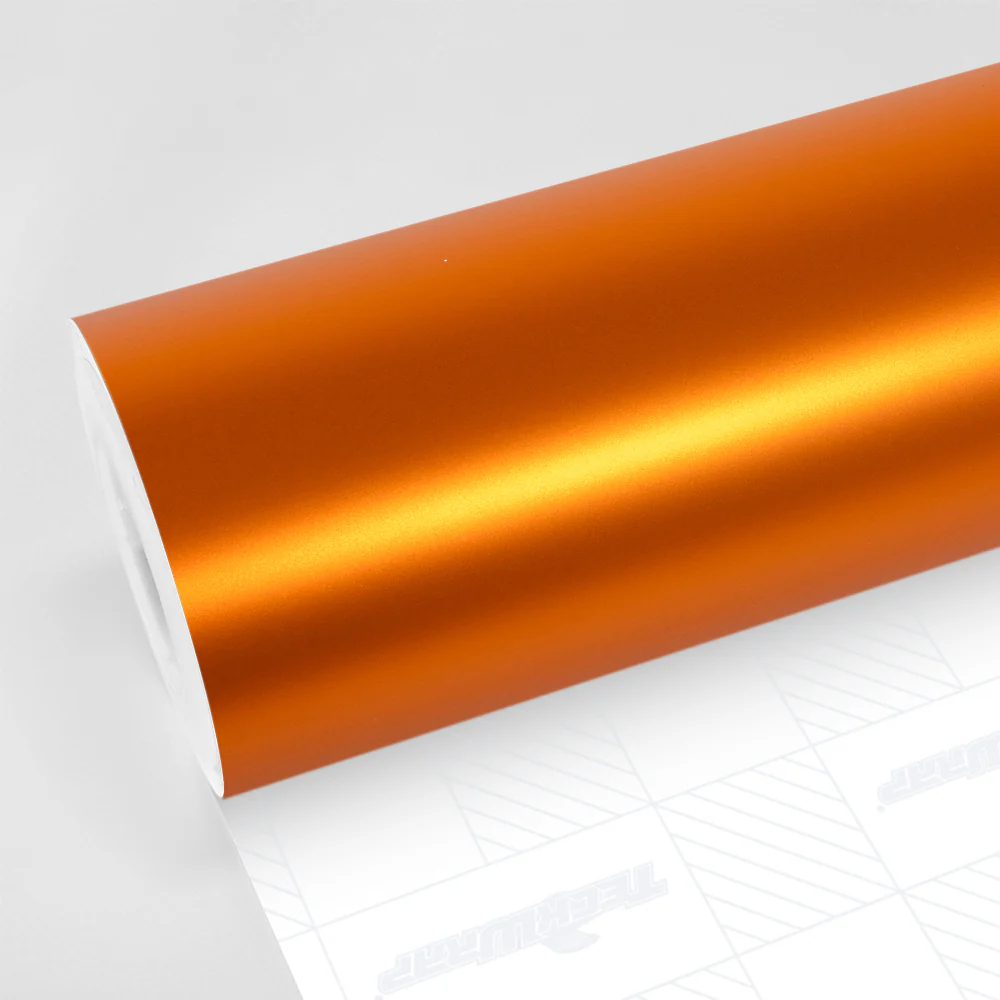

Colors: SMT17R Copper Orange
Series: 190 series
Adhesive: Henkel solvent-based acrylic adhesive, transparent, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 μm dry
Release liner: Felix Schoeller Release Liner / 20-104-20-1,9 printed, double side PE coated Kraft. One side solventless silicone-coated, air release (ISO 9001, ISO 140001, OHSAS 18001)
Storing period: 3 years if stored in +10°С to +20°С for optimal quality, relative humidity 50%, in original package, away from direct sunlight, in a clean and dry place
Durability/Warranty: Datasheet (Click the link)
Post heating: 65 Celcius
Elongation/Break MD:206.8 / CD:196.4 (Test method: ASTM D882-02)
Tensile Strength: MD:29.5 / CD:24.8 N/mm2 - Speed 200mm/min (Test method: ASTM D882-02)
Dimensional Stability: 2% - Oven/10'*70C(MD) (Test method: ASTM D1204-02)
Surface Tension: 34 dynes/cm (Test method: ASTM D2578-04a, 24 hours after production)
Package: Roll width 152 cm, length 18 or 23 m

Install tips:

Temperature: from +17°-18°С, usage from -45°С to +45°С
Tools: Standard squeegee with soft (wet) buffer
Conformability: smooth and medium curved surface
Directional: yes
Overlap width: 3-4mm

Important note: The screen's images, colors, and finishes are approximate. For the actual representation of the product, always check the color swatch or order an A4 Sample.

Rolls from the same production LOT number should be used to complete a wrap job, as a slight batch-to-batch variation of color may occur. The film may be scratched during the application or during a day of in and out-use. The warranty does not cover the scratching of the film.

Orange Vinyl Wrap

Copper Orange (SMT17R) Vinyl Wrap

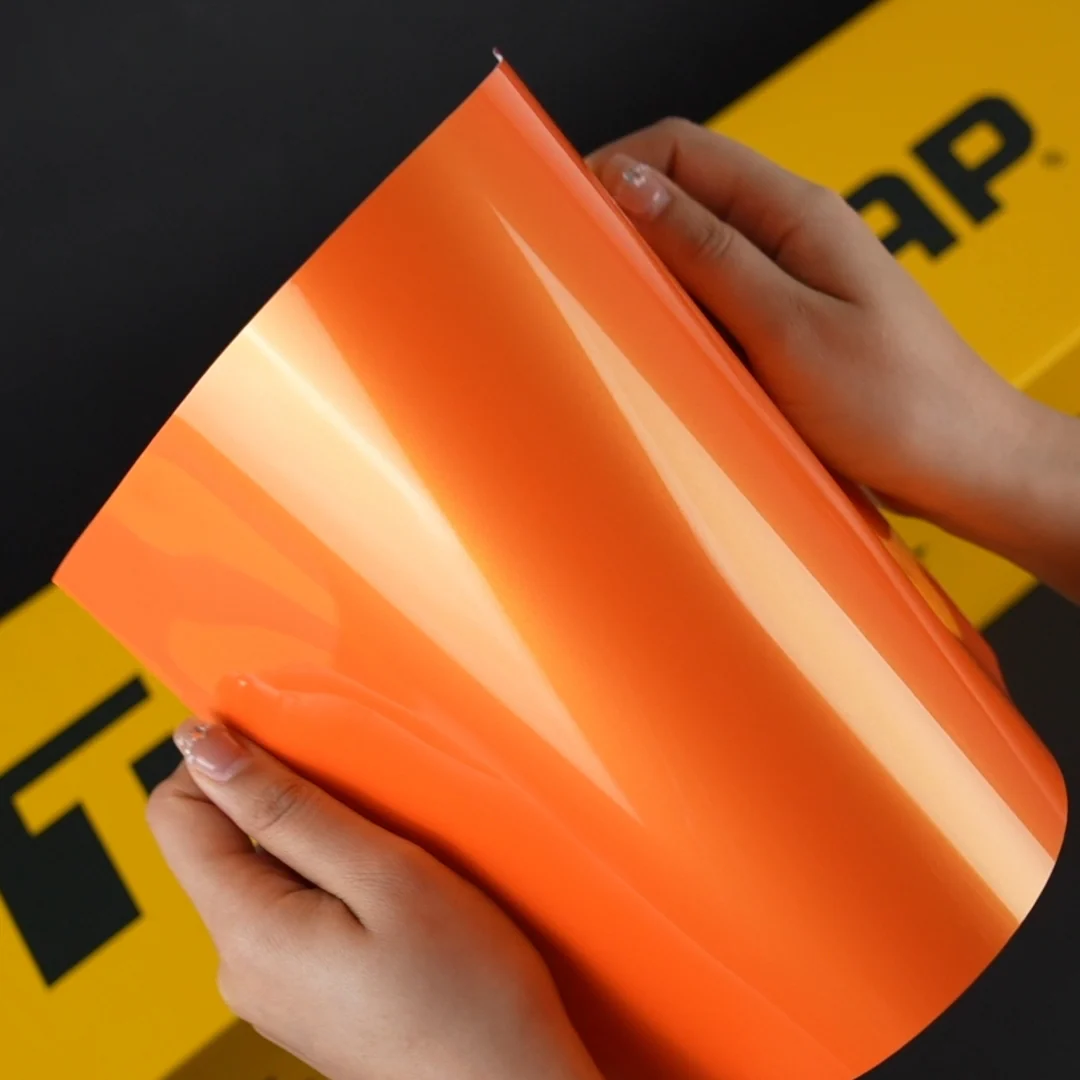

TeckWrap A4 Samples / ORANGE VINYL WRAP
